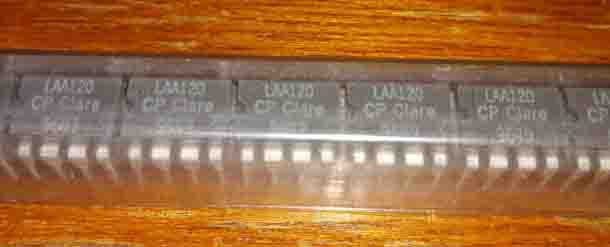

艾赛斯 光耦 LAA120 LAA120 LAA120S LAA120P LBA120L固态继电器 直插 DIP8

Description

Features

• Small 8 Pin DIP Package

• Low Drive Power Requirements (TTL/CMOS

  Compatible)

• No Moving Parts

• High Reliability

• Arc-Free With No Snubbing Circuits

• 3750VRMS Input/Output Isolation

• FCC Compatible

• VDE Compatible

• No EMI/RFI Generation

• Machine Insertable, Wave Solderable

• Surface Mount and Tape & Reel Versions Available

  Applications

• Telecommunications
  • Telecom Switching
  • Tip/Ring Circuits
  • Modem Switching (Laptop, Notebook, Pocket Size) • Hookswitch

  • Dial Pulsing
  • Ground Start
  • Ringer Injection

• Instrumentation
  • Multiplexers
  • Data Acquisition
  • Electronic Switching
  • I/O Subsystems
  • Meters (Watt-Hour, Water, Gas)

• Medical Equipment-Patient/Equipment Isolation

• Security

• Aerospace

• Industrial Controls

LAA120 is a 250V, 170mA, 20Ω 2-Form-A relay. It features enhanced peak load current handling capability and improved on-resistance. Current limiting version is available (“L” suffix, see specification for variations in per- formance).

Approvals

• UL Recognized: File Number E76270
• CSA Certified: File Number LR 43639-10 • BSI Certified to:

• BS EN 60950:1992 Certificate #: 7344

• BS EN 41003:1993 Certificate #: 7344

Ordering Information

(BS7002:1992)

Pin Configuration

LAA120 Pinout

AC/DC Configuration

+ Control - Switch #1

– Control - Switch #1 + Control - Switch #2

– Control - Switch #2

18

27 36

45

Load - Switch #1

Load - Switch #1 Load - Switch #2

Load - Switch #2
